KNX room controller LS TOUCH

三维模型 - KNX room controller LS TOUCH

High resolution IPS colour display
Capacitive touchscreen
Function of favourites page adjustable (without ETS)
Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
Integrated room temperature sensor
Room temperature control with setpoint specification
Control of split units (only with update, available since July 2024)
Alarm function (optical and/or acoustic)
Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
Integrated proximity and brightness sensor
Integrated bus coupling unit
Connection of installation buttons or reed contacts possible
Commissioning and support of KNX Data Secure with ETS from version 5.7.4
Can be updated
Display of room temperature and setpoint temperature
External temperature sensor (ref.-no.: FF NTC) can be connected
Display of outdoor temperature – with external sensor, e.g. weather station
In combination with JUNG Smart Visu Server: music play control and volume control

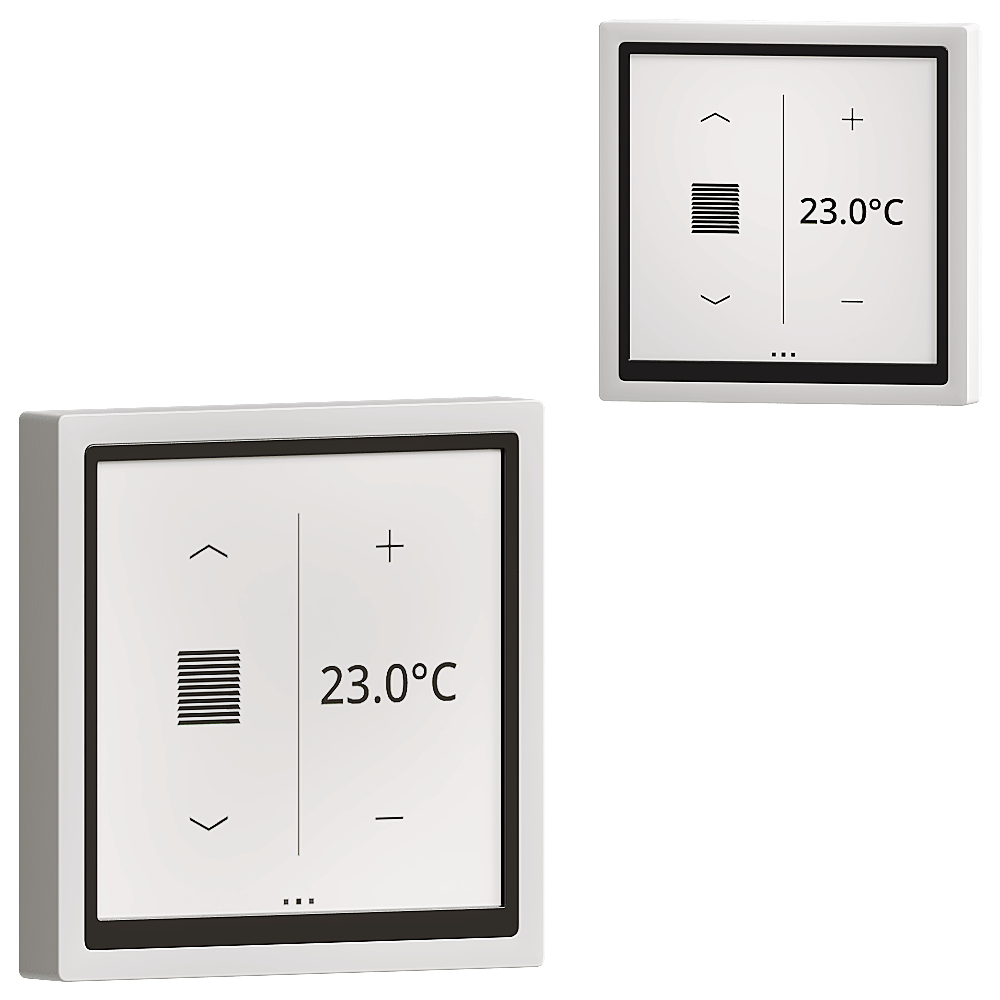

3D model of KNX room controller LS TOUCH

Width - 8,1 cm
Length - 8,1 cm
Depth - 1,1 cm
